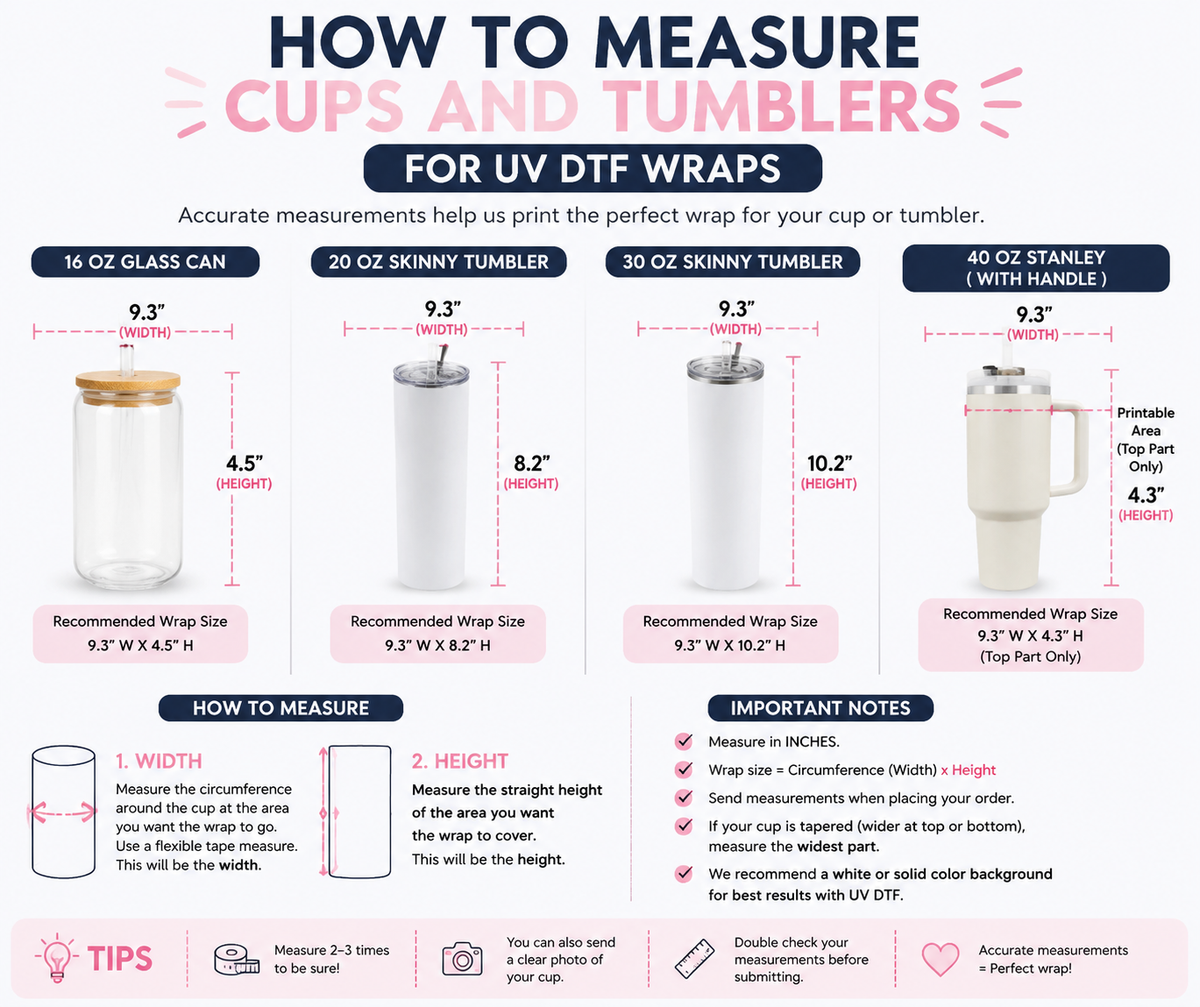

How to Measure Cups and Tumblers for UV DTF Wraps
To measure a cup or tumbler for a UV DTF wrap, wrap a flexible tape measure around the widest part of the cup for the width, then measure straight down the side for the height, leaving a small gap at the top and bottom seams so the wrap doesn't overlap itself. At DTF in Texas, we walk customers through this same process before printing, since getting the measurements right the first time is what makes a wrap look clean and seamless once it's applied.
A UV DTF wrap only looks as good as the measurements behind it. Too wide, and the ends overlap awkwardly. Too short, and there's an ugly gap where the design doesn't quite meet. Getting it right isn't complicated, but it does take a little care and the right approach for the shape of cup you're working with.
What You'll Need Before Measuring
- A flexible tape measure (a fabric or sewing tape measure works better than a rigid ruler for wrapping around a curve)
- The actual cup or tumbler you're designing for, not just the size printed on the packaging
- A notepad or notes app to record width and height together, since they'll both be needed for the design file
How to Measure the Width
- Find the widest point of the cup. Most tumblers taper slightly, so the true widest point is usually near the top rim, just below where it curves inward.
- Wrap the tape measure snugly around that point, keeping it level and not twisted.
- Subtract a small seam gap — typically 1/8" to 1/4" — from the full circumference. This keeps the two ends of the wrap from overlapping once it's applied.
How to Measure the Height
- Measure straight down the side of the cup, from just below the rim to just above the base.
- Avoid measuring over the handle on cups that have one — the wrap area is usually only on the smooth cylindrical body.
- Leave a small margin at the top and bottom, generally 1/8" to 1/4", so the wrap doesn't run into the rim or the base curve where it could peel more easily.
Common Measuring Mistakes to Avoid
- Measuring the box instead of the actual cup — printed dimensions on packaging can be slightly off from the real product
- Pulling the tape too tight or too loose, which throws off the width and leads to a wrap that overlaps or falls short
- Forgetting the seam gap, which is one of the most common reasons a finished wrap doesn't line up cleanly
- Not accounting for taper, especially on cups that are noticeably wider at the top than the base — measuring at the wrong point changes the fit
Measuring for Different Cup Shapes
Straight-sided tumblers are the simplest to measure, since the width stays consistent from top to bottom.
Tapered cups need their width measured at the widest point, usually near the top, since that's where the wrap needs the most room.
Cups with handles should be measured only around the smooth body section where the wrap will actually sit, skipping over the handle entirely.
FAQ
What's the standard seam gap I should leave when measuring? Most UV DTF wraps use a 1/8" to 1/4" gap so the wrap edges meet cleanly without overlapping.
Should I measure the cup empty or with a lid on? Measure the cup itself, without a lid, since the wrap only applies to the body of the cup.
What if my cup tapers and the top is wider than the bottom? Measure the width at the widest point, which is usually near the top, so the wrap has enough room to wrap the full body without falling short lower down.
Can I reuse the same measurements for a similar-looking tumbler from a different brand? It's best to measure each cup individually, since sizes can vary slightly between brands even when they look similar.
